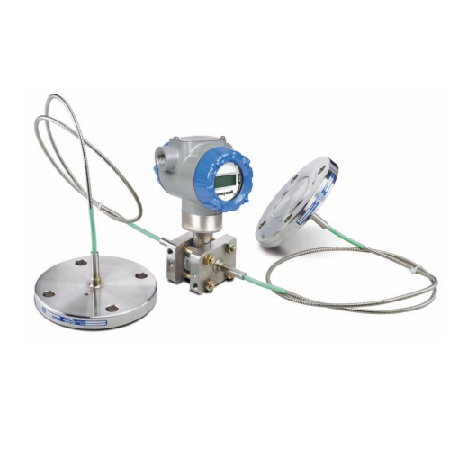

STR700 SmartLine Remote Diaphragm Seals level transmitter

Introduction:

STR700 products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion ® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Transmitter Features:

 Accuracies up to 0.075% Span standard
 Automatic static pressure & temperature
compensation
 Rangeability up to 100:1
 Local display capabilities
 External zero, span, & configuration capability
 Polarity insensitive electrical connections
 Comprehensive on-board diagnostic capabilities
 Integral Dual Seal design for highest safety based on
ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
 World class overpressure protection
 Full compliance to SIL 2/3 requirements.
 Modular design characteristics

Typical Diaphragm Seal applications:

 High Process Temperatures
 Viscous or Suspended Solids
 Highly Corrosive Process Materials
 Sanitary Applications
 Applications with Hydrogen Permeation Possibilities
 Level Applications with Maintenance Intensive Wet
Legs
 Applications requiring remote Transmitter Mounting
 Tank Applications with Density or Interface
Measurements

Communications/Output Options:

 Honeywell Digitally Enhanced (DE)
 HART ® (version 7.0)
 FOUNDATION™ Fieldbus
All transmitters are available with the above listed
communications protocols.

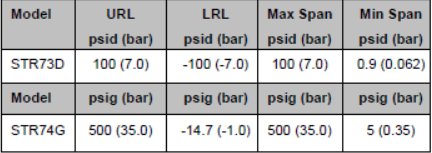

Remote Seal/Transmitter Span & Range Limits:
