STG700 Gauge Pressure Transmitters

What Is it ?

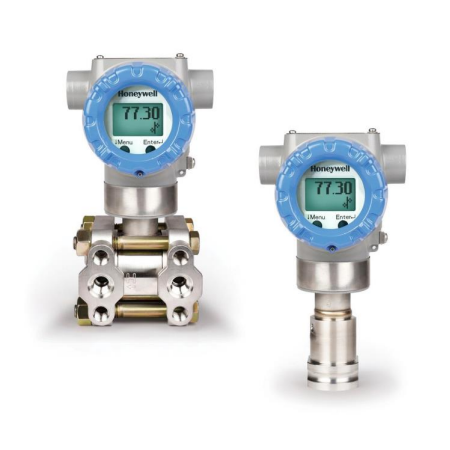

Dual Head Gauge Pressure Transmitters are suited for typical applications involving reaction vessels in the chemical industry and level applications with process temperatures up to 257°F /125°C.

In-Line transmitters are screwed directly onto a 1/2” male NPT nipple and can be installed in hazardous environments for accurate, repeatable pressure measurement. Typical applications include high-pressure measurement in boilers, fuel feeds and high-pressure reaction vessels in the petrochemical and hydrocarbon recovery industries.

Introduction

Part of the SmartLine® family of products, the STG700 Dual Head and STG700 Inline are suitable for monitoring, control and data acquisition. STG700 Dual Head products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

Best in Class Features:

o Accuracy up to 0.065 % of calibrated span

o Stability up to 0.025% of URL per year for five years

o Automatic temperature compensation o Rangeability up to 100:1 o Response times as fast as 100ms

o Easy to use and intuitive display capabilities

o Intuitive External zero & span capability

o On-board diagnostic capabilities

o Integral Dual Seal design for safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0

o Full compliance to SIL 2/3 requirements as a standard.

Communications/Output Options:

o HART ® (version 7.0)

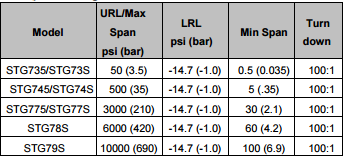

Span & Range Limits:
