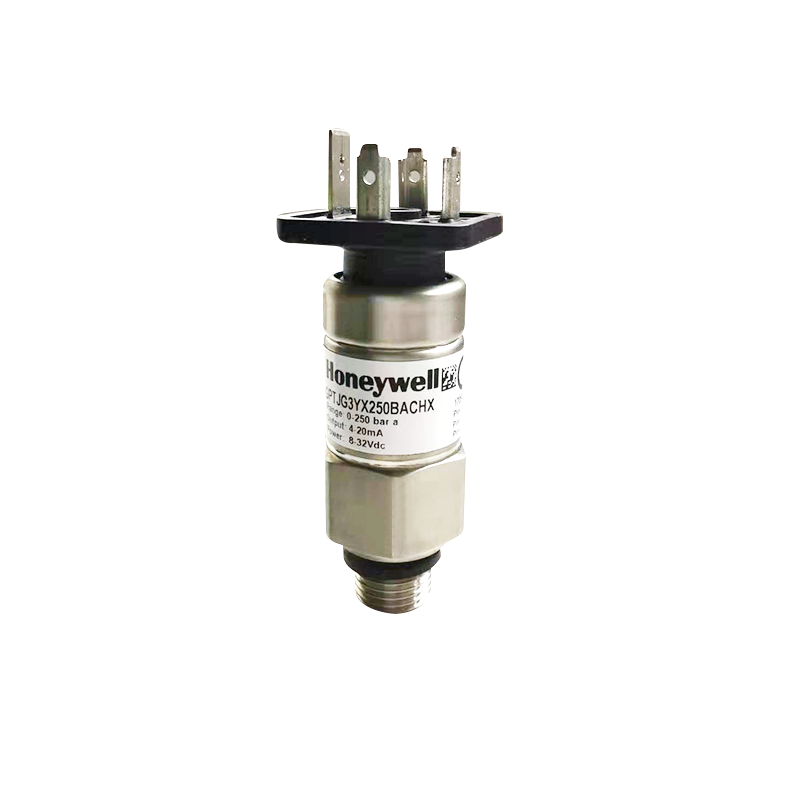

Honeywell GPT

The Honeywell GPT series of pressure transmitters use piezoresistive sensing technology and signal conditioning application-specific integrated circuits (ASics) and are equipped with stainless steel housing and electrical connectors. All GPT products have been fully calibrated, including temperature compensation in the 0ºC to 80ºC range. Product features: complete dielectric isolation; Pressure range: 40Bar-600Bar; Output: 4-20mA, voltage (proportional or stable); Full calibration and temperature compensation; Total error band: ± 2.0% FSS (0 ° C-80 °C temperature range); Insulation resistance: >100 MΩ, 500 Vdc; Insulation strength: 250 Vdc, 1 minute; Electromagnetic compatibility (EMC) : level of heavy industry; Protection level up to IP67; Response time: <2 ms TYP (no buffer); RoHS, REACH and CE certification.
