Differential Pressure Transmitter/Pressure Transmitters GTX

Flange Type of Differential pressure transmitter GTX35F GXT60F

long-term stability of only ±0.1 % drift over 10 years
100 ms or faster
Rangeability 1:400
Zero/span adjustment can be done without opening the cover.
Product description: Flange Type of Differential pressure transmitter GTX35F GXT60F
INQUIRY

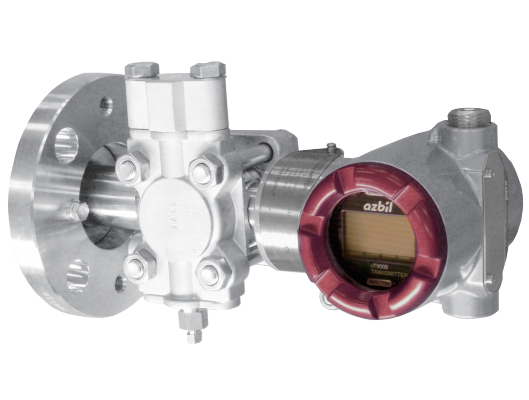

AT9000 Advanced Transmitter Flange-Mounted Differential Pressure Transmitters (GTX**F series) can be attached to a tank-side flange to measure fluid level, specific gravity, etc. We offer an extensive lineup ranging from 40 mm small bore models to 100 mm protruding flange models.

Flange-Mounted Differential Pressure Transmitters

Main specifications

Model	GTX35F	GTX60F
Measurement span	2.5 to 100 kPa	70 to 3500 kPa
Setting range	-100 to 100 kPa	-100 to 3500 kPa
Reference accuracy (Varies by material and measurement span)	±0.2%	±0.15%
Fill fluid	Silicone oil (general purpose models), fluorine oil (oxygen and chlorine models)
Waterproof and dust-proof construction	IEC IP66/IP67
Explosion-proof construction	TIIS flameproof (Exd IICT4) KOSHA flameproof FM explosion proof, intrinsic safe and Nonincendive ATEX/NEPSI/IECEx flameproof, intrinsic safe and Type n INMETRO flameproof
Range of operating temperatures for liquid part (Varies with pressure)	Silicone oil: -40 to 110°C Fluorine oil: -10 to 75°C
Range of operating pressures for liquid part (Varies with temperature)	Silicone oil: from 2 kPa abs Fluorine oil: from 54 kPa abs
Wetted material	SUS316 (diaphragm SUS316L), Hastelloy C, Tantalum
Power	17.9 to 42V DC
Output signal	4 to 20 mA DC (SFN communication) 4 to 20 mA DC (HART® communication)
Flange bore	Flush models: 80 mm, 50 mm, 40 mm. Protruding models: 100 mm, 80 mm, 50 mm
Safety certification	Safety Integrity Level (SIL) 2 certification
